Features
- Variable oscillation speed form 0 to 90 per minute
- Includes 1/4”, 3/8”, 1/2”, 5/8”, 3/4”, 1”, 1-1/2”, 2”, 3” and 4” sanding sleeves
- Switch with safety key
- Comfortable storage space for easy access to all the accessories
- Spacious inside space of cabinet for easy access and service
- Table tilts 45˚ front and features a 90˚ quick index
- Baffle prevent work pieces falling when table is tilted
Specificaitons
| Oscillating Spindle Sander | ||
| Main Motor | ||
| Horsepower | 1 HP | |
| Phase | Single | |
| Voltage | 115 V | |
| Motor Speed | 1720 RPM | |
| Running Amps | 11 A | |
| Power Plug Installed | 15 A | |
| Oscillating Motor | ||
| Motor Type | DC motor | |
| Horsepower | 1/30 HP | |
| Phase | Single | |
| Voltage | 115V | |
| Motor Speed | 90 RPM | |
| Running Amps | 0.6A | |

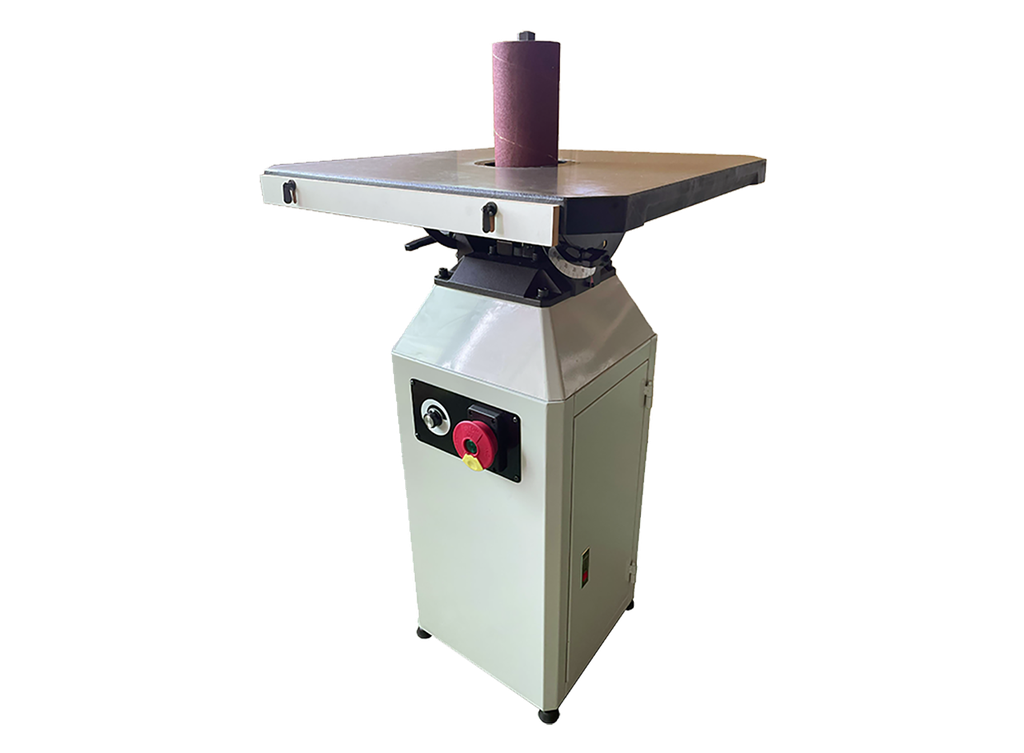

A comprehensive solution for professional woodworking
Ease of Use
The oscillating spindle sander features variable oscillation speed, adjustable from 0 to 90 strokes per minute. This design reduces abrasive wear, prevents burning on workpieces, and ensures more uniform sanding. Whether working on flat surfaces, curves, or fine details, users can easily achieve optimal results.

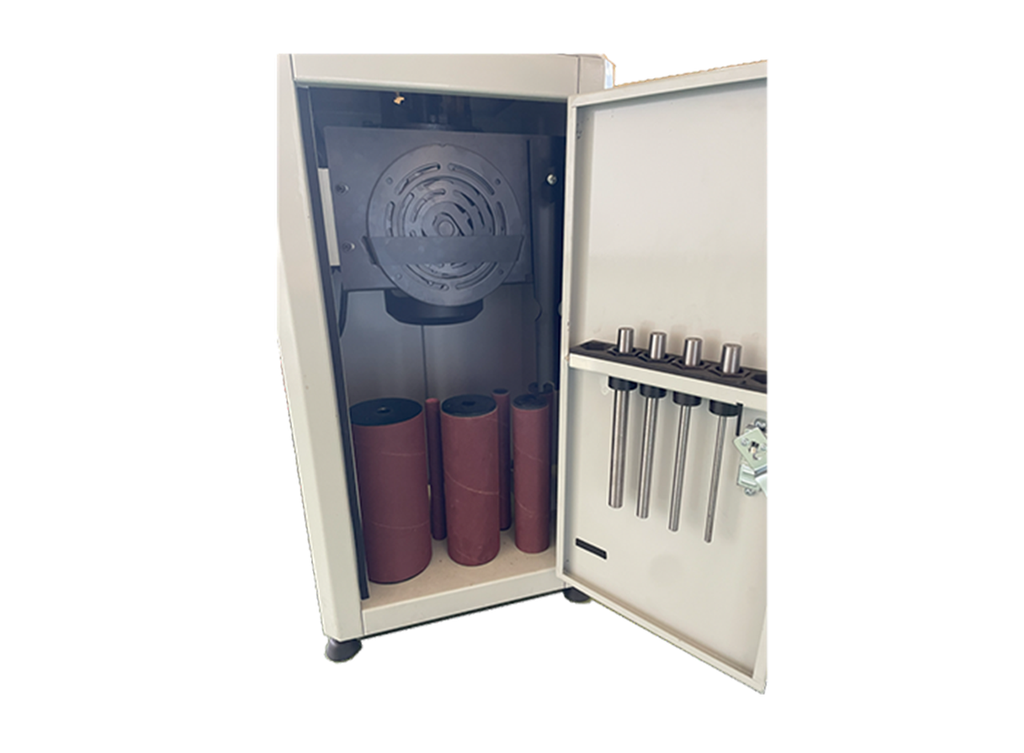

Storage Advantage
The cabinet provides spacious internal storage, allowing all spindles and accessories to be neatly organized and quickly accessed. This not only improves work efficiency but also makes maintenance more convenient, preventing accessories from scattering or being misplaced.

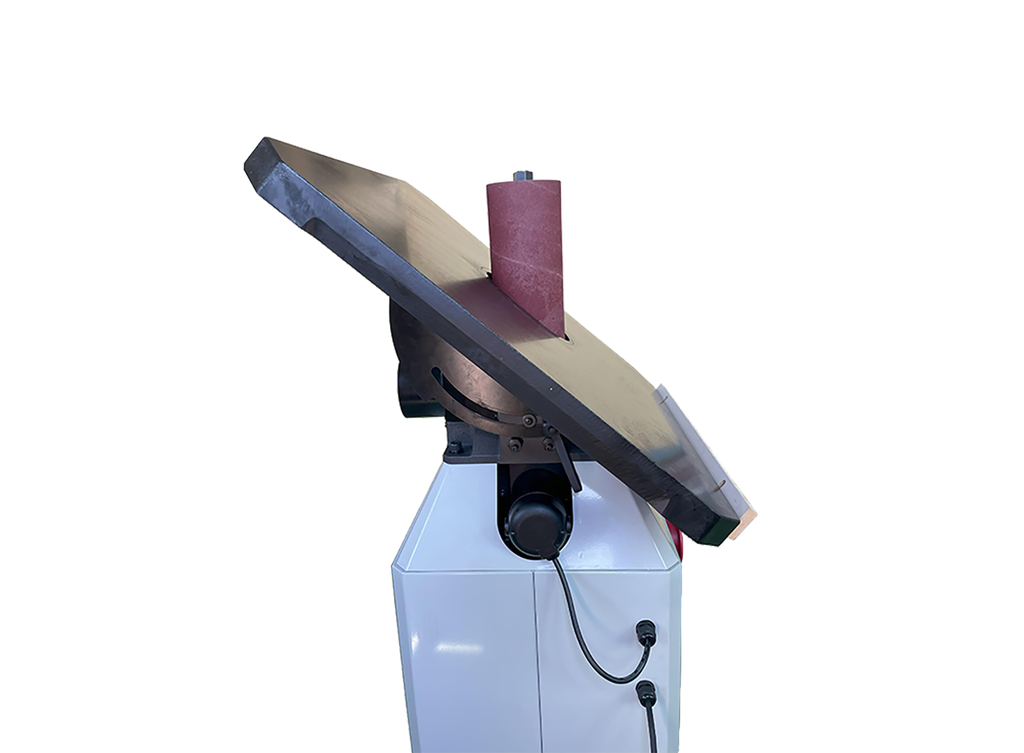

Operational Flexibility
The worktable tilts 45 ° forward and includes a 90 °quick index, combined with a baffle to prevent workpieces from slipping. This ensures stability and safety when sanding at different angles, making it easier and more precise to handle special curves or angles.
Safety Design
Equipped with a safety key switch to prevent accidental activation, ensuring peace of mind even in busy workshop environments.
Complete Accessory Set
Standard accessories include 5 spindle diameters (1/4", 3/8", 1/2", 5/8", 3/4"), 5 sanding drum diameters (1", 1-1/2", 2", 3", 4"), and matching sanding sleeves. From fine edge finishing to large surface sanding, all task can be accomplished with one machine.
