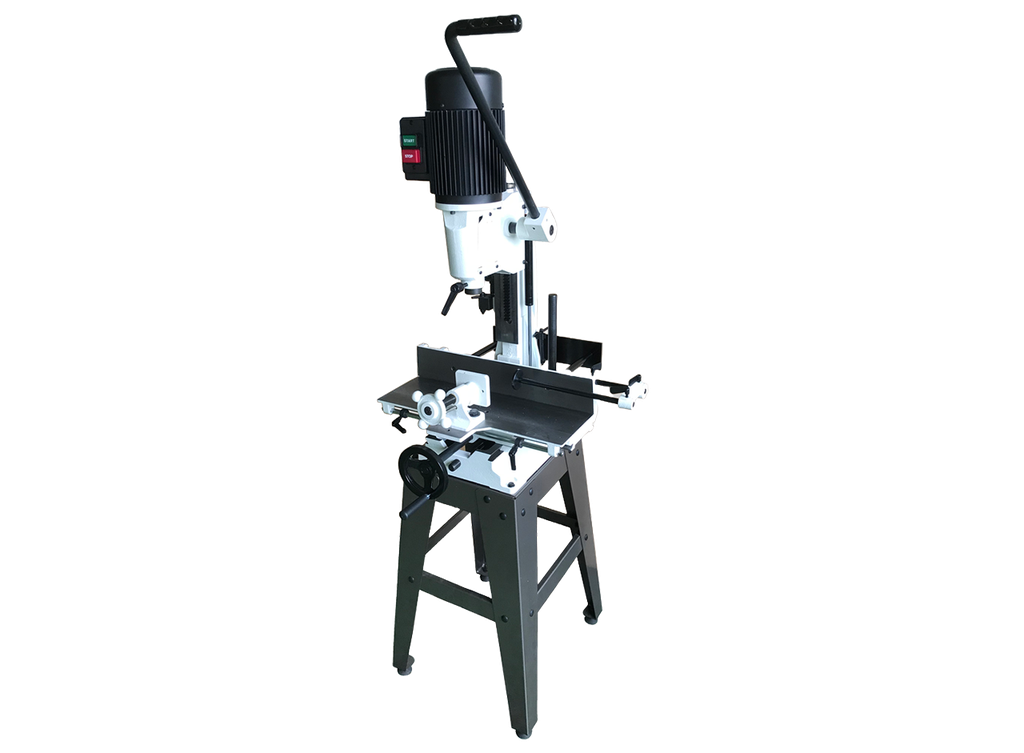

Features
- Cast iron construction, the machine is sturdy and durable

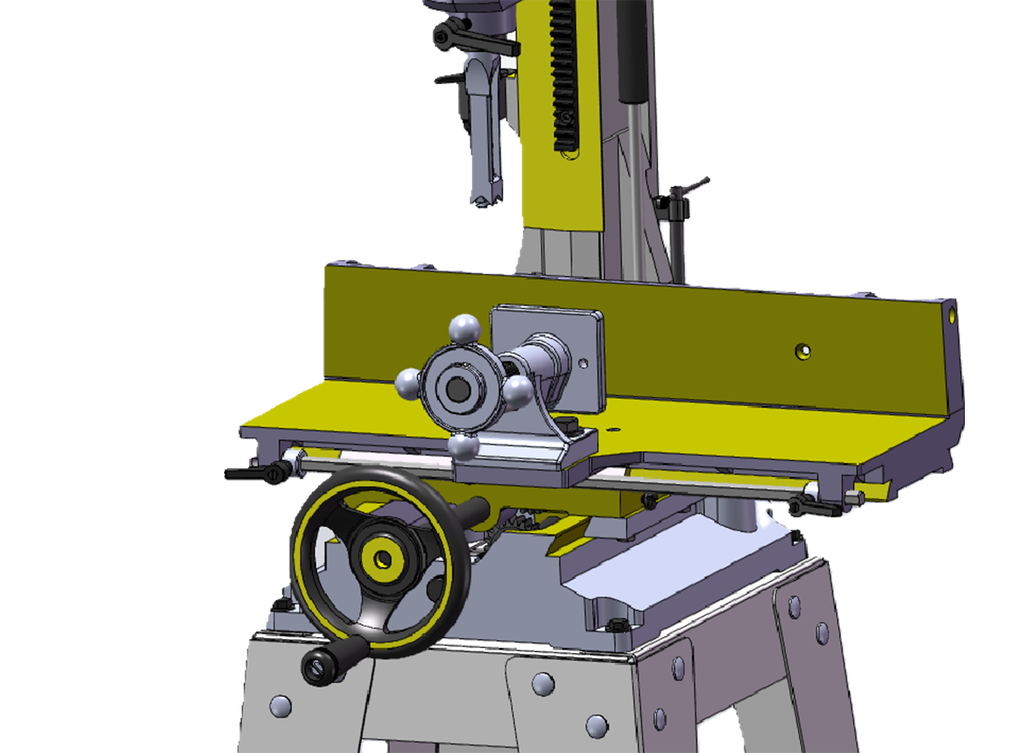

- Easily control the longitudinal and lateral table movement with one hand wheel
- With lateral stops for repeat mortising and a depth stop which includes a haunch stop, it can be used to produce a number of different joints

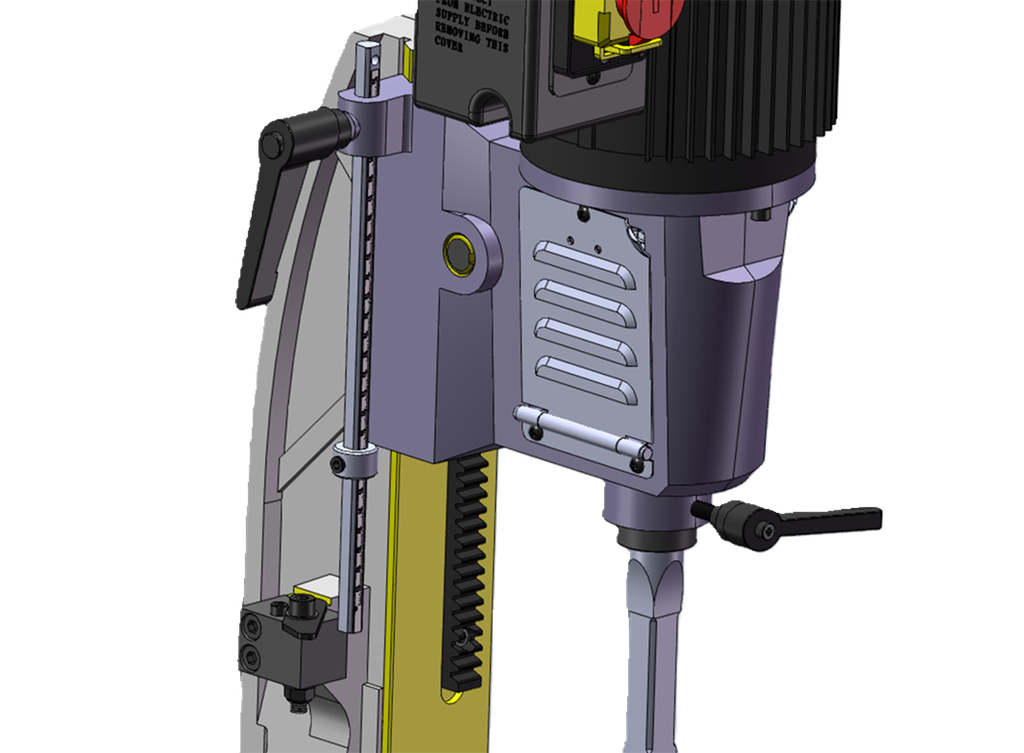

- Benefit from reduced fatigue and "parking" of the headstock in any position, thanks to the gas strut assisted headstock travel

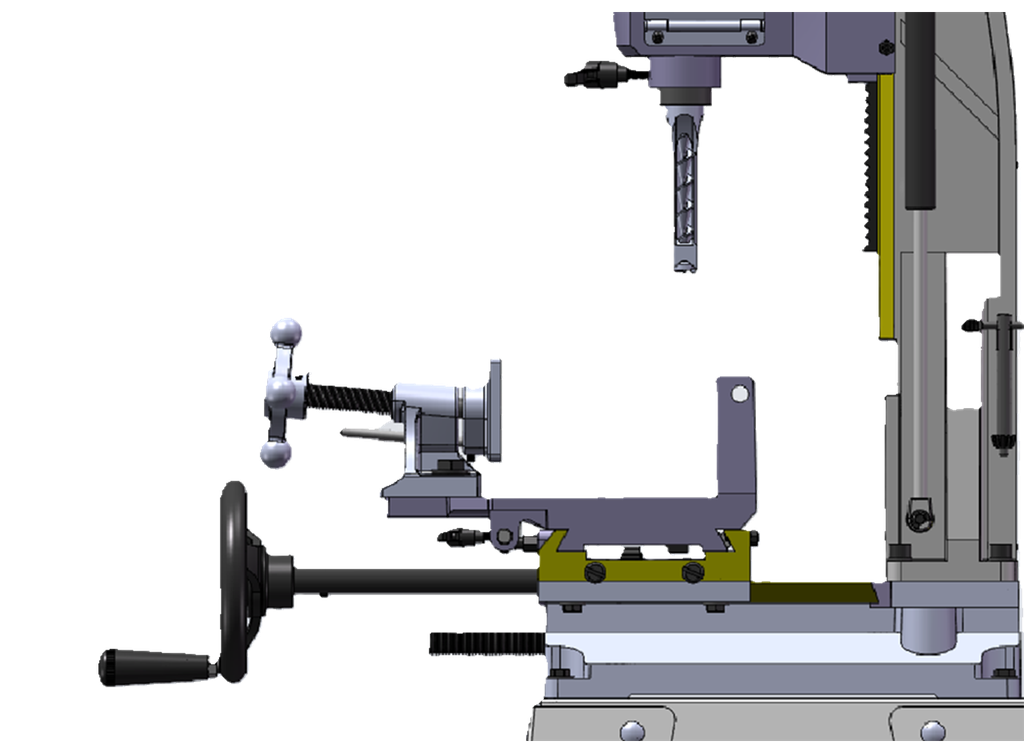

- The multiple position material clamp can accommodate a range of workpiece widths, enhancing the versatility further
Specifications
| Chisel Mortiser | ||
| Hosepower | 1 HP | |
|
Phase | Single | |
| Centre of Chisel to Back Fence | 4-5/16 in (110 mm) | |
| Chisel Stroke | 4-15/16 in (125 mm) | |
| Lateral Table Movement | 4 in (100 mm) | |
| Longitudinal Table Movement | 16-1/8 in (410 mm) | |
| Max Chisel Size Hardwood | 3/4 in (19 mm) | |
| Max Chisel Size Softwood | 1 in (25 mm) | |
| Max Height of Timber | 7-1/2 in (190 mm) | |
