Features
- The column can be reversed to accommodate larger stock
- The extended, multi-position mortising handle allows for easy repositioning, ensuring optimal comfort and control throughout operation
- The adjustable depth stop ensures uniform mortise depths, improving precision and repeatability
- Two doors provide convenient access to the drill chuck for quick adjustments and maintenance
Specifications

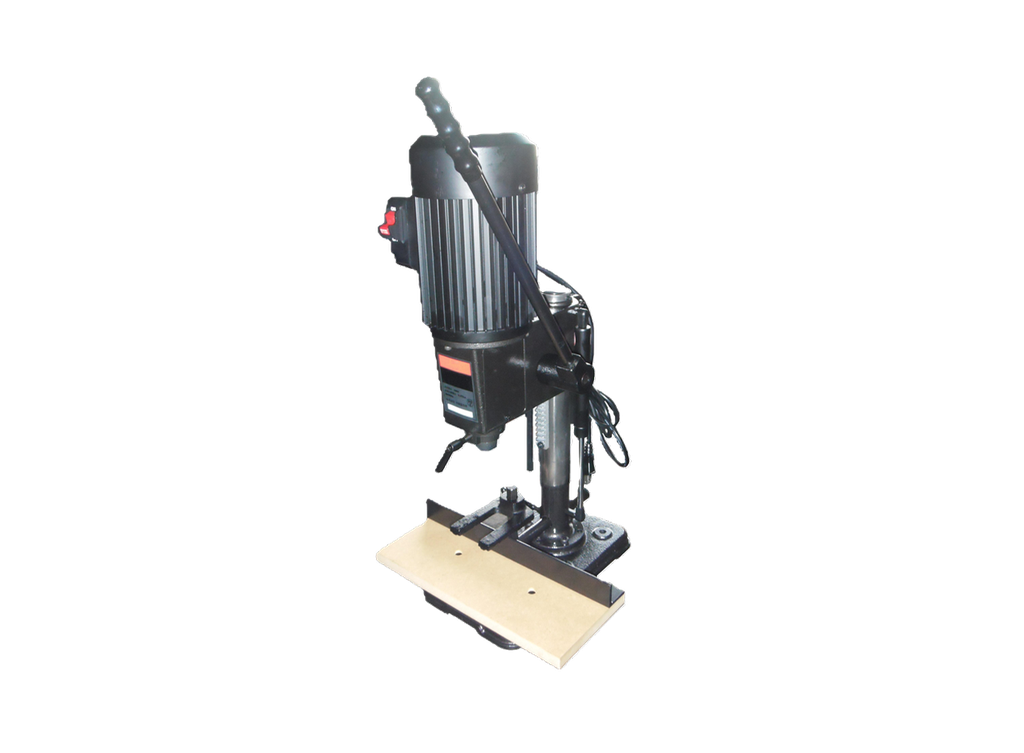

| Bench Type Chisel Mortiser | ||
| Horsepower | 1/2 HP | |
| Phase | Single | |
| Voltage | 115 V | |
| Workpiece Height Max. | 4-1/8 in (105 mm) | |
| Drilling Capacity | 1/8 - 1/2 in (3 - 12 mm) | |
| Spindle Travel | 4-5/16 in (110 mm) | |
| Throat Depth | 4-1/2 in (115 mm) | |
| Table size | 12-3/16 x 7-1/2 in (310 x 190 mm) | |
| Dimensions | 14-1/2 x 13-3/4 x 31-1/2 in (370 x 350 x 800 mm) | |
